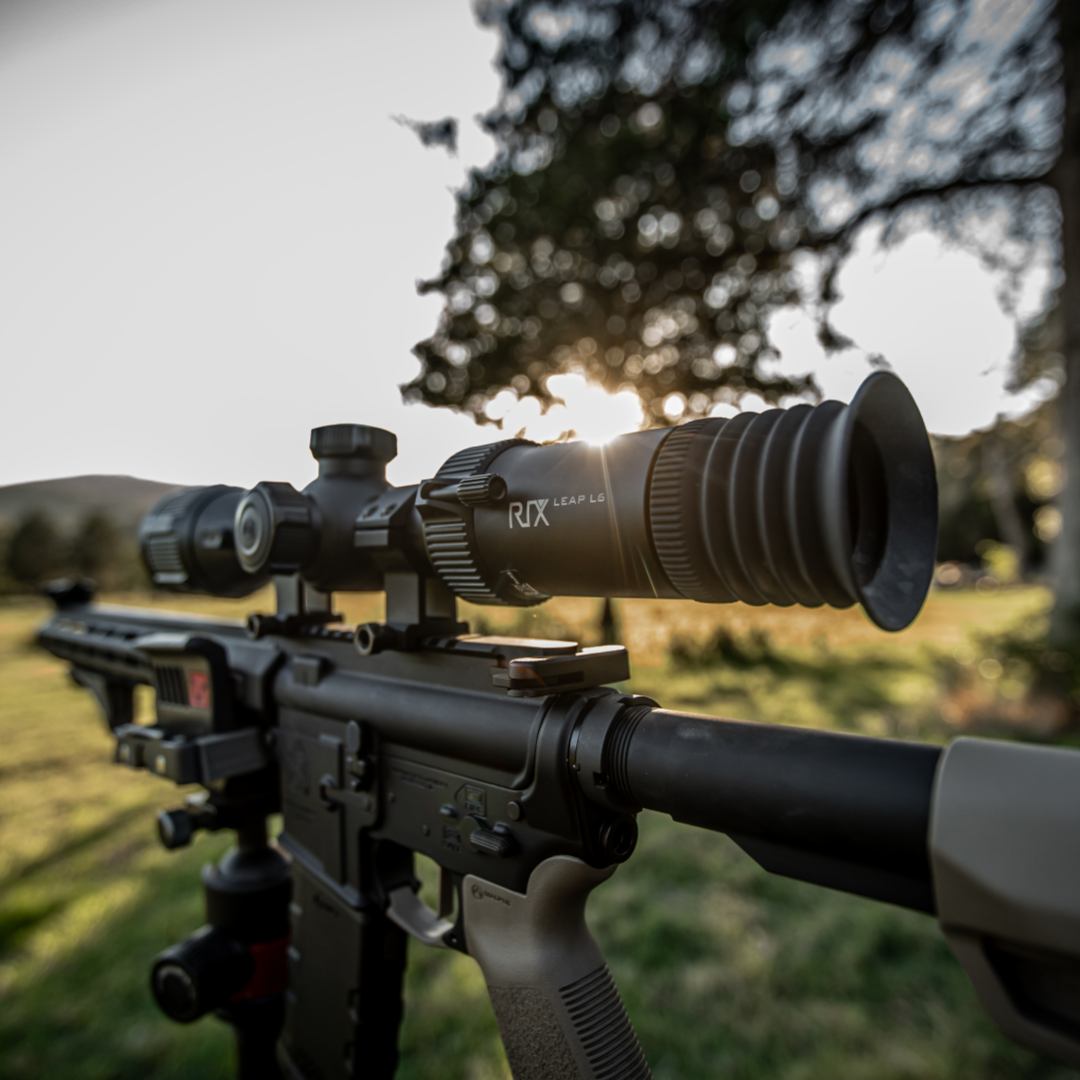

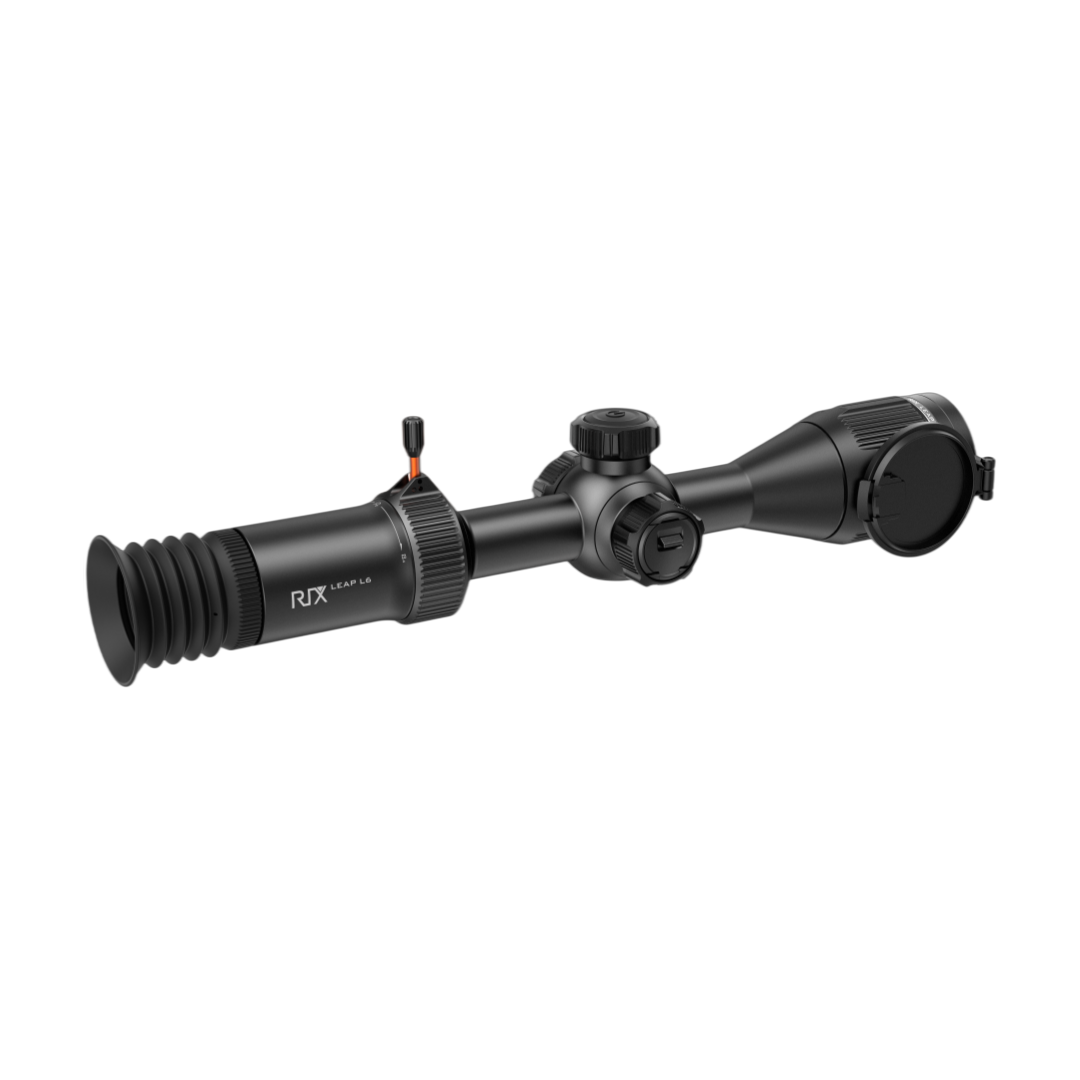

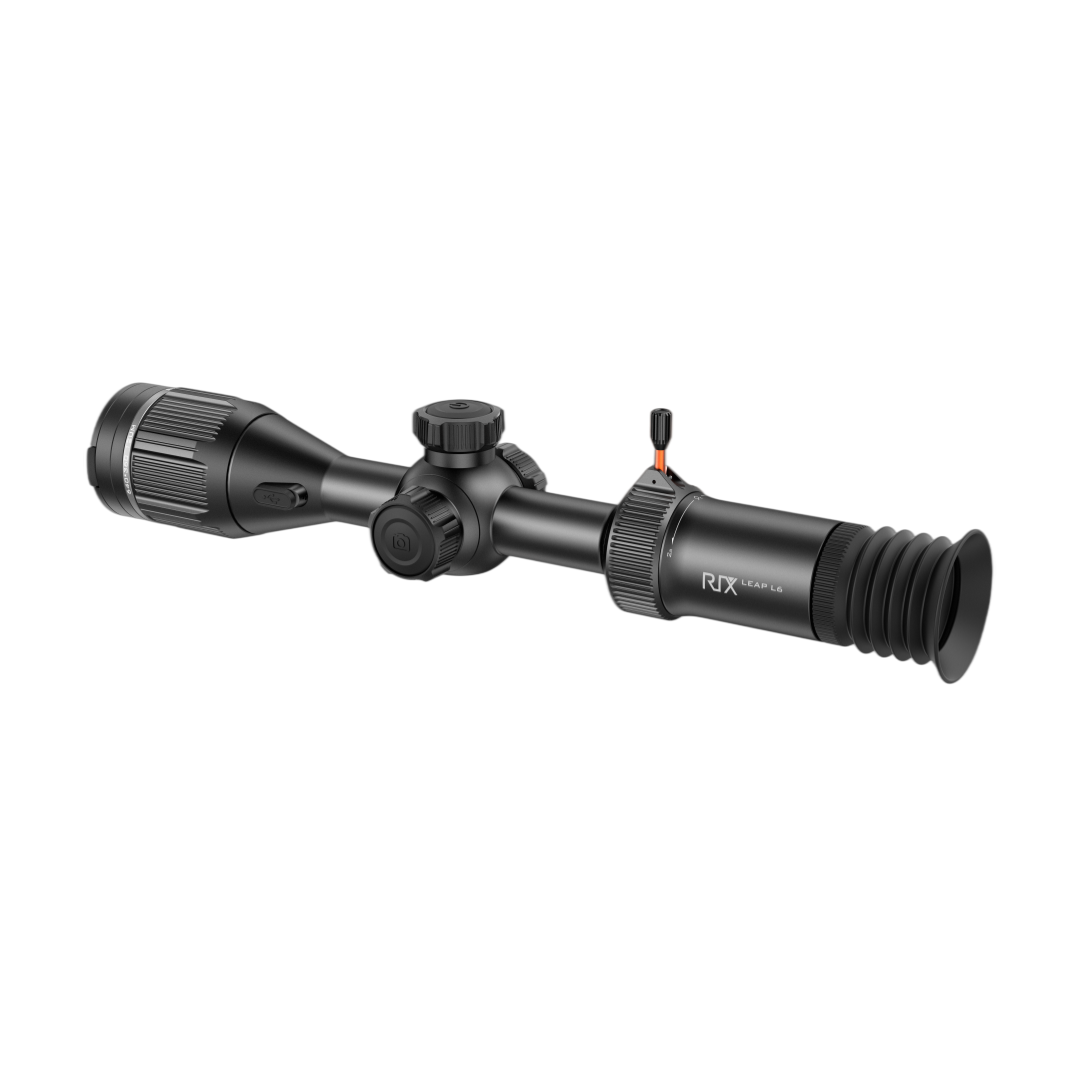

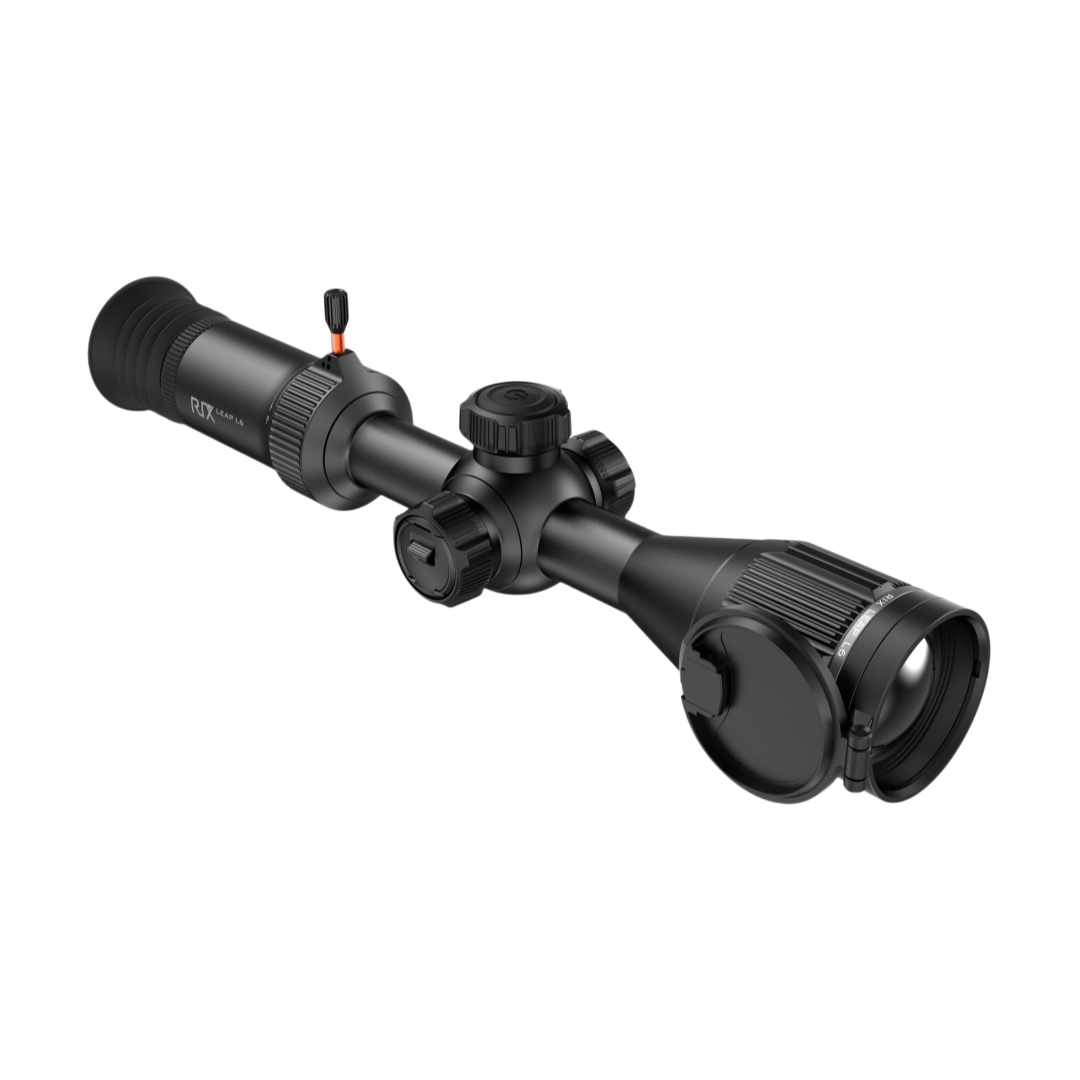

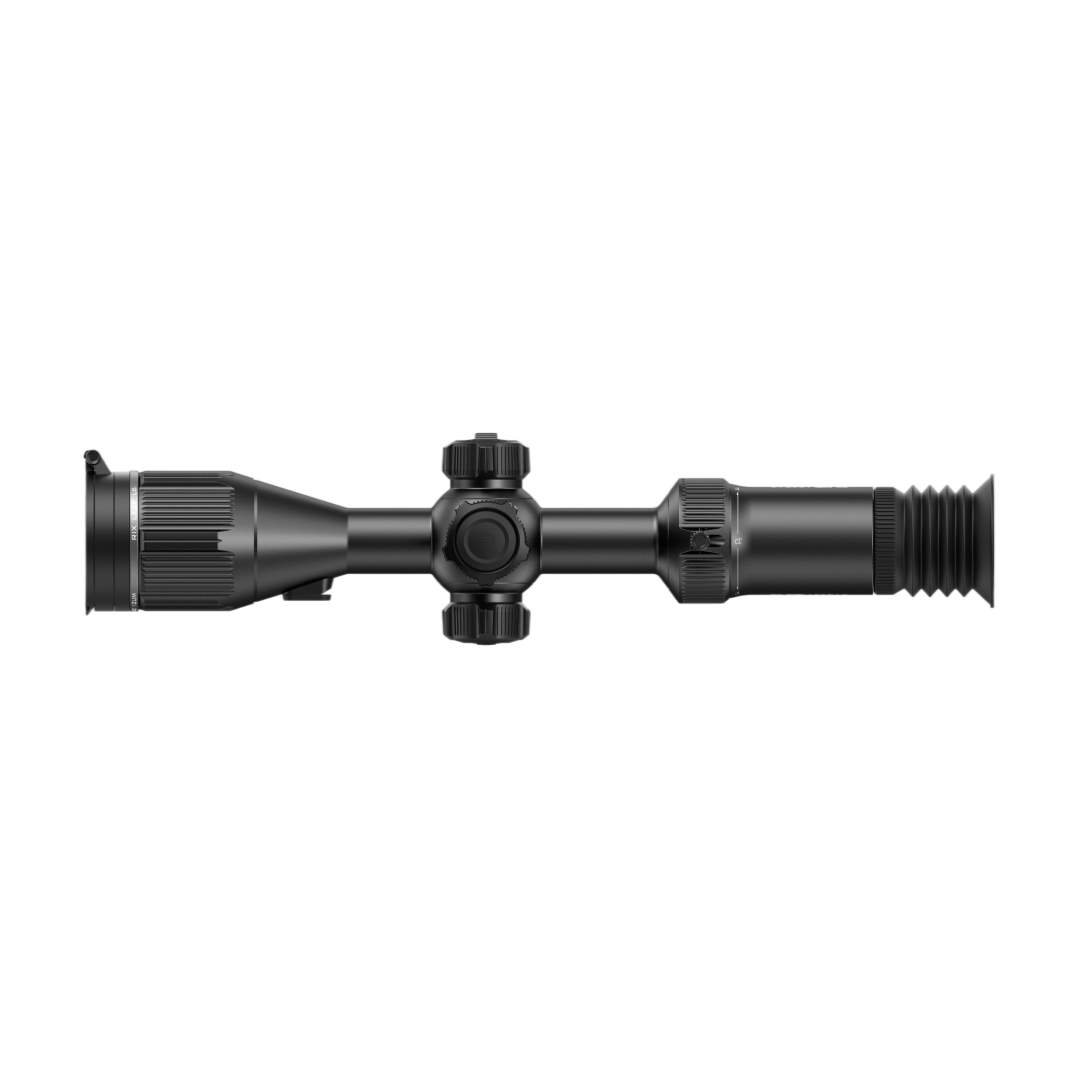

- The LEAP 6 (L6) is the world’s first continuous optical zoom 640 thermal scope, specially designed for outdoor hunting during the day and night. Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness.
- It features a 30mm standard tube diameter for easy mounting and offers a range of functionalities, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options.
- Enjoy extended usage with the replaceable 18650 battery. A single battery provides over 9 hours of continuous operation, and with just three batteries, you can experience a full day of uninterrupted usage.
- Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions.
| Model |
L6 |
| Sensor Specifications |
Type |
VOx Uncooled |
| Resolution, pixels |
640×360 |
| Pixel pitch, μm |
12 |
| NETD, mK |
<25 |
| Frame rate, Hz |
50 |
|
| Optical Specifications |
Objective Lens，mm |
50 |
| Optical zoom, x |
2.8 to 8.4 |
| Field of View, degrees / yd @ 100 yd |
8.8°/15.4yd |
| Digital zoom, x |
1 to 4 |
| Eye relief, mm |
50 |
| Diopter adjustment, D |
-5 – +5 |
| Detection Range, m/yd |
2600/2844 |
|
| Display Specifications |
Type |
OLED |
| Resolution, pixels |
1920×1080 |
|
| Wi-Fi |
Wireless protocol |
Wi-Fi |
| Frequency, GHz |
2.4GHz |
|
| Video Recorder |
Video/Photo resolution, pixels |
960×720 |
| Video/Photo format |
.mp4 / .jpg |
| Built-in memory, GB |
32 |
|
| Physical Specifications |
Degree of Protection, IP code |
IP67 |
| Operating Temperature Range, °F |
-4 to+122 |
| Weight, lb |
2.6 |
| Dimensions, inch |
14.6×3.5×3 |
|
| Connections and Compatibilities |
Battery Type |
18650 |
| Operating Time on Battery Pack (at t=72°F), h |
7 |
| External Power Supply, V |
5V (Type C USB) |
| Max Recoil Power on Rifled Weapon (Eo), g/Joules |
1000g/6000Joules |
| Compatible Mounts |
30mm rings |
Leap L6, L6，RIX L6，LEAP L6 Thermal Imaging RifleScopes, RIX OPTICS L6
